110-600mm Pre-Insulated Pipe Production Line High-Efficiency

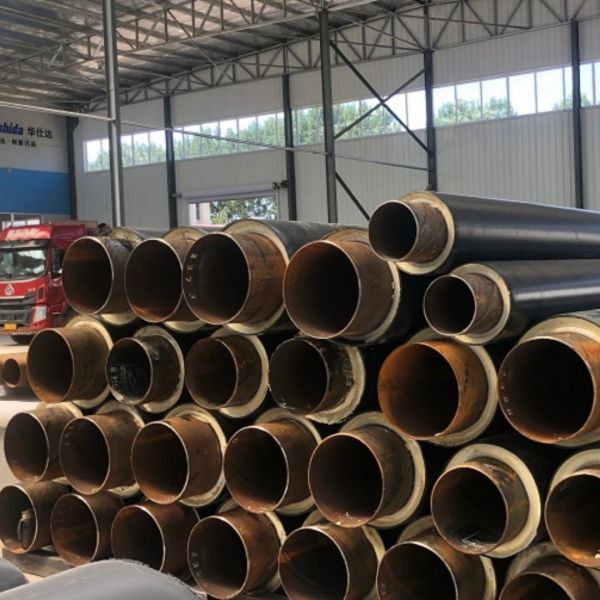

The HDPE pre-insulated pipe casing extrusion line is a highly efficient, energy-saving core component of the HDPE casing + PU foam pre-insulated pipe production system. Designed in strict accordance with international standards, it is specifically engineered to manufacture high-quality HDPE casing pipes that serve as the protective outer layer for polyurethane (PU) foam insulated pipes.
Using the vacuum calibration method, the line produces HDPE casing pipes with smooth internal and external surfaces, ensuring long service life, excellent anti-corrosion performance, and strong mechanical properties — all of which contribute to the superior quality of the final pre-insulated pipe.
This fully automatic extrusion line supports high-speed, stable operation, seamlessly integrating into the complete pre-insulated pipe production system. It delivers consistent diameter accuracy, high pressure resistance, and long-term durability, perfectly complementing the PU foam insulation layer to form reliable, high-performance pre-insulated pipes.
Widely applied in district heating, urban pipeline networks, and industrial thermal transmission projects, this line meets global market demands for high-quality casing pipes and overall pre-insulated pipe system performance.
| Style |
PE-110/500 |
PE-655/1380 |
PE-960/1860 |
PE-1155/2200 |
| Main Extruder |
SJ-75/33 |
SJ-120/33 |
SJ-150/33 |
SJ-150/33 |
| Pipe diameter |
Φ110-600mm |
Φ655-1380mm |
Φ960-1860mm |
Φ1155-2200mm |
| Capacity |
250-350kg/h |
700-900kg/h |
1000-1200kg/h |
1350kg/h |
| Installed power |
160kw |
480kw |
580kw |
650kw |
| Length |
26m |
36m |
45m |
48m |
Production line composition:
- 1set Vacuum loader
- 1set Hopper dryer
- 1set High-efficiency single screw extruder
- 1set Vacuum calibration table
- 1set Water spraying tank
- 1set Hauling machine
- 1set Cutting machine
- 1set Discharging Frame
- 1set PLC
Technical Highlights:
| Single-screw extruder |
Precision temperature control system ensures consistent material fusion
Proprietary single-screw extruder optimized for polyethylene (PE) materials |
| Vacuum Calibration |
Patented vacuum calibration system replaces traditional internal pressure methods |
| Smart Automation |
Fully integrated PLC control system
Real-time process monitoring |
| Production Capabilities |
Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent) |
Our Advantages
Features of the HDPE sleeve production line:
- small dimension
- high degree of automation, can be operated by one person, saving labor costs
- long service life.
- high-efficiency extruder gives larger output, stable performance
- pipe wall is average and smooth
- no waste of raw material
- One-time molding

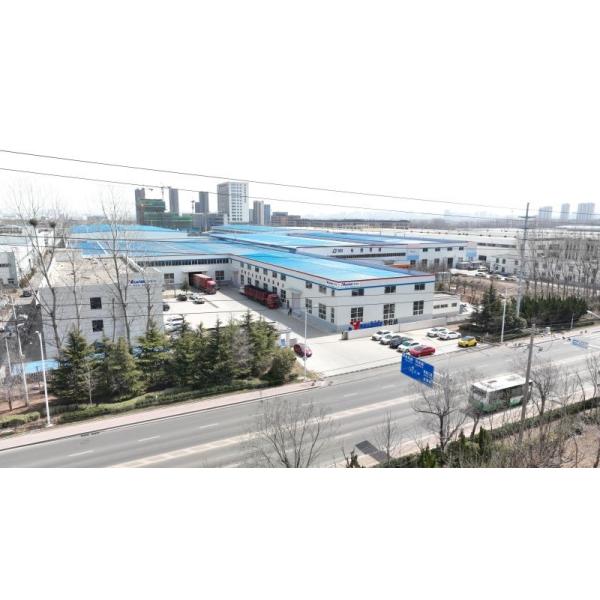

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
